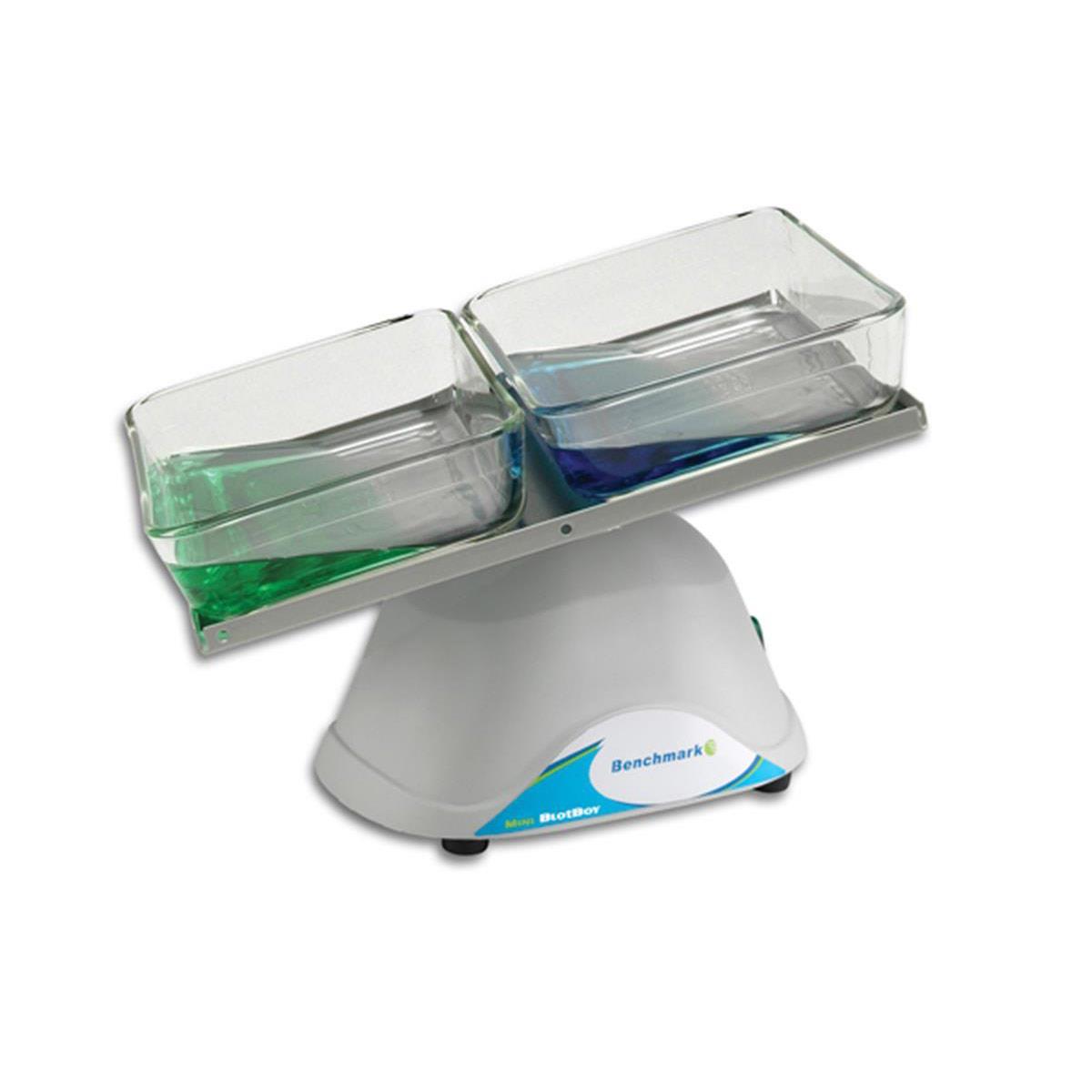

Mini BlotBoy 3D rocker, fixed speed, small 10"x7.5" platform with flat mat, 115V
Product#: BM-B3D1008
$497.44
Availability:
Ships in 48 hours
MINI BLOTBOY™ 3D ROCKER, FIXED SPEED, SMALL 10"X7.5" PLATFORM W/ FLAT MAT, 115V
- Optimized speed and tilt for gel blotting, washing & staining
- Tri-directional motion for thorough, gentle mixing
- Optional stacking platforms available
- Cold room and incubator safe
Description
Modeled after our popular BioMixer™ series of “nutating” shakers, these platform rockers provide the perfect 3-dimensional motion for all blot related applications. Their tilt angle and speed have been optimally set for gentle, but thorough mixing in gel trays, boxes and other flat vessels.
Mini BlotBoy™ and BlotBoy™ are supplied with autoclavable flat mats and are ideal for blot washes and gel staining/destaining. Both models have been designed to conserve bench space. The Mini BlotBoy is supplied with a 10.5 x 7.5 inch platform while the larger BlotBoy’s 12 x 12 inch platform expands the useable work surface by 80%.
The Mini BlotBoy and BlotBoy can accept stackable platforms and handle loads up to 2kg. Both have maintenance free brushless motors and are safe for use in cold rooms and incubators.
Mini BlotBoy™ and BlotBoy™ are supplied with autoclavable flat mats and are ideal for blot washes and gel staining/destaining. Both models have been designed to conserve bench space. The Mini BlotBoy is supplied with a 10.5 x 7.5 inch platform while the larger BlotBoy’s 12 x 12 inch platform expands the useable work surface by 80%.
The Mini BlotBoy and BlotBoy can accept stackable platforms and handle loads up to 2kg. Both have maintenance free brushless motors and are safe for use in cold rooms and incubators.
Specifications
|
Speed Range
|
Fixed; 12 rpm (230V: 20 rpm)
|
|
Tilt Angle
|
Fixed; +/- 8°
|
|
Platform Size (1008/1308)
|
10.5x7.5 in/12x12in
|
|
Load Capacity
|
4 lbs (1.8kg)
|
|
Operating Temp. Range
|
+4°C to +50°C
|
|
B3D1008 Dims (in/cm)
|
10.5x7.5x8in/27x19x20
|
|
B3D1308 Dims (in/cm)
|
12x12x8/30x30x20
|
|
Weight
|
4.4lbs (2kg)
|
|
Electrical
|
115 or 230V 50-60Hz; 50W
|
|
Warranty
|
2 years
|
Order Information
| Cat No. | Description | Link |
| BM-B3D1008 | Mini BlotBoy 3D rocker, fixed speed, small 10"x7.5" platform with flat mat, 115V |  |
| BM-B3D10080E | Mini BlotBoy 3D rocker, fixed speed, small 10"x7.5" platform with flat mat, 230V | |
Optional Accessories
An optional stacking platform can be purchased as an accessory, effectively doubling the usable work surface (*BR2000-STACK)
| Model | Cat No. | Description | Link |
 |
BMMAGC |
MAGic Clamp™ Platform and Accessories (includes: magnetic clamps, platforms, and tube racks) ***For use with the Incu-Shaker and Orbi-Shaker series' |
|
 |
BR2000-FLAT | Flat mat, extra large 14" x 12" | |
 |
BR2000-STACK |
Stacking platform, extra large 14" x 12" with flat mat (3.0" separation)
|
