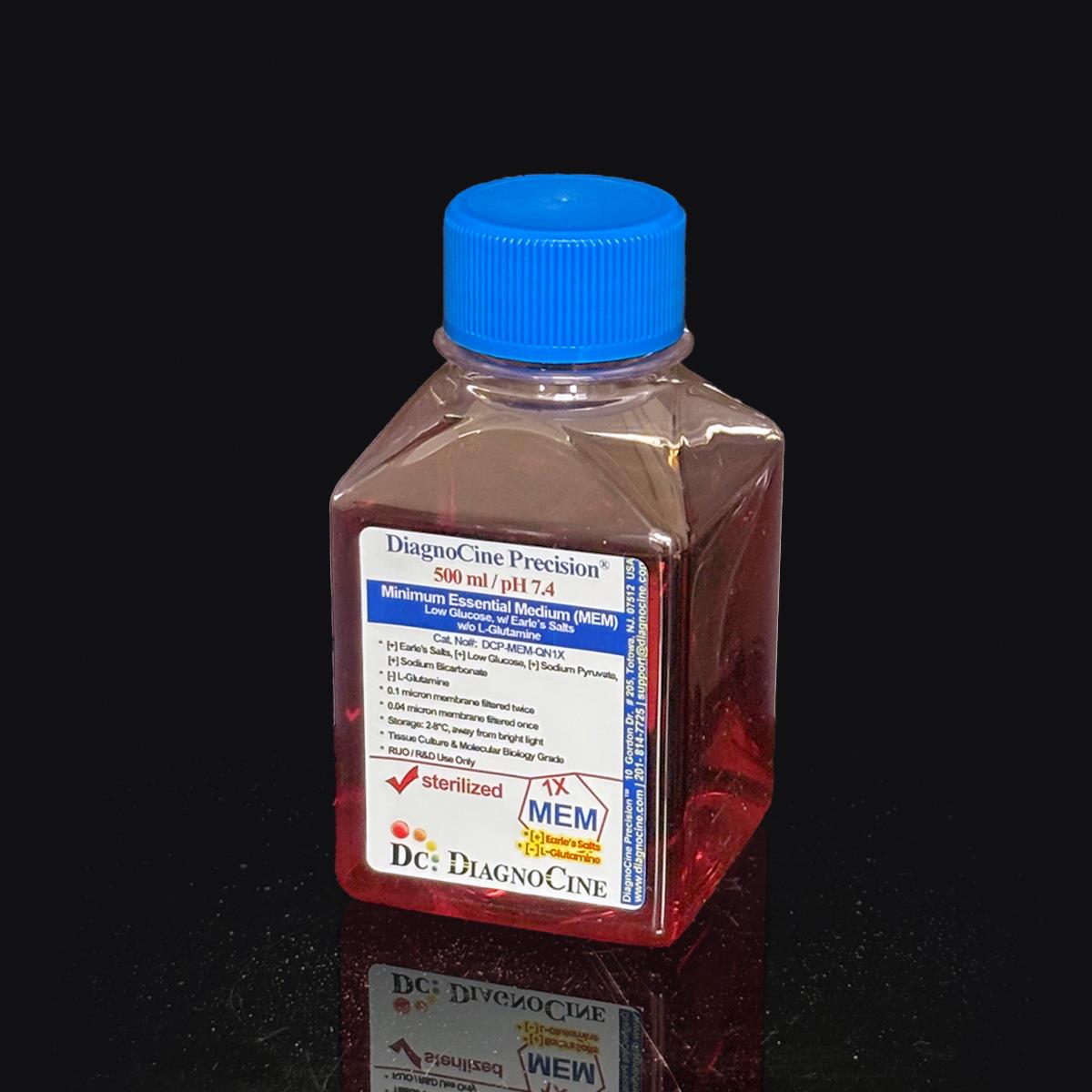

FluxMPS™ MEM, Low Glucose with Earle's Salts w/o L-Glutamine
FluxMPS™ MEM, Low Glucose with Earle's Salts (DCP-MEM-QN1X) is a Microfluidics Suitable Minimum Essential Medium engineered for microphysiological system (MPS), organ-on-a-chip (OoC), and microfluidic applications where conventional 0.22 µm-filtered media fall short. A quadruple-stage filtration train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off — five times finer than the 0.22 µm membranes used for conventional sterile filtration — protecting narrow microchannels from blockage while preserving the full nutrient composition needed for demanding cell models.
- Quadruple-stage filtration (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off, five times finer than conventional 0.22 µm sterile filtration
- Low-glucose Minimum Essential Medium (1,000 mg/L D-Glucose) with Earle's Salts, 110 mg/L sodium pyruvate, and 2,200 mg/L sodium bicarbonate
- L-Glutamine-free formulation for user-controlled supplementation at time of use
- Endotoxin release specification: < 0.05 EU/mL (USP <85> BET), tested per manufacturing batch
- Sterility confirmed by 14-day USP <71> assay; no bacterial or fungal growth observed
- Manufactured under an ISO 13485:2016 quality management system; final QC and packaging at Diagnocine, Totowa, NJ, USA
- Full amino-acid and B-vitamin suite formulated for lot-to-lot consistency in long-duration perfusion culture
- Customization available: pH, glucose level, HEPES, NEAA, salts, and nutrients — contact support@diagnocine.com
UNSPSC: 41116155 | Commodity: Molecular biology and cell culture growth media | (UNv260801)
FluxMPS™ MEM, Low Glucose with Earle's Salts w/o L-Glutamine — Liquid, 1X
- Glucose1,000 mg/L (Low)
- L-GlutamineNot included
- Sodium Pyruvate110 mg/L
- pH (USP <791>)7.4
- Osmolality265 – 305 mOsm/kg H2O
- Endotoxin (USP <85>)< 0.05 EU/mL
- Filtration0.1 µm ×2 + 0.04 µm ×2 (Quadruple-stage)
- Storage2–8°C, away from light
- Shelf Life12 months from date of manufacture, unopened
- Available Sizes500 mL, 1000 mL
Engineered where standard media fails
Conventional 0.22 µm-filtered MEM does not exclude mycoplasma-sized organisms (0.2–0.3 µm), subvisible particulates, or ionic impurities that can accumulate in microchannels and compromise morphology in long-duration perfusion cultures. FluxMPS™ adds two additional filtration passes—including a second 0.04 µm final polish—to deliver a medium that is microchannel-safe, ultra-clean, and fully traceable from raw material to fill.[1]
Microchannel-Safe Purity
A 0.04 µm final filter is evaluated for USP <788> Method 1 (Light Obscuration) particulate compliance, reducing the risk of channel blockage and flow resistance drift in organ-on-a-chip devices.[2]
Total Metabolic Control
Low-glucose (1 g/L), L-glutamine-free formulation lets researchers define the amino-acid supply precisely—useful for Warburg-effect, metabolomics, and flux-analysis experiments.
Ultrapure-Grade Water
Prepared with Type 1 Ultrapure water at 18.2 MΩ·cm (ASTM D1193 / ISO 3696), minimizing trace-metal and organic-carbon contribution from the water source.[3]
Low Background for Imaging
A low particulate baseline reduces background scatter in confocal live-cell imaging and integrated biosensor read-outs on chip. Note: this formulation contains phenol red, which itself contributes optical absorbance — select a phenol-red-free variant for fluorescence-sensitive assays.
Rich, Stable Nutrient Profile
Full MEM amino-acid and vitamin suite—including arginine, isoleucine, leucine, lysine, and essential B-vitamins—micro-batch formulated for lot-to-lot consistency and long perfusion stability.
Customization on Demand
pH, glucose concentration, Earle's or Hank's salts, HEPES, NEAA, and calcium level are all adjustable. Request a custom formulation at support@diagnocine.com.
Quadruple-stage filtration system
DCP-MEM-QN1X is filtered through two dedicated 0.1 µm/0.04 µm prefilter-plus-final-filter pairs in series, run in the order 0.1 µm → 0.04 µm → 0.1 µm → 0.04 µm, before an aseptic fill. This paired, redundant architecture reaches a 0.04 µm final cut-off — five times finer than the 0.22 µm membranes used in conventional single-pass sterile filtration.
-
1
0.1 µm Prefiltration I
Removes large particulates, cell debris, and protein aggregates ahead of the first 0.04 µm final filter, protecting downstream membrane capacity and extending filter service life.
-
2
0.04 µm Final Filtration I
First 0.04 µm pass retains sub-micron particulates and mycoplasma-sized organisms (0.2–0.3 µm) that pass unimpeded through a standard 0.22 µm membrane.
-
3
0.1 µm Prefiltration II
A second, dedicated 0.1 µm prefilter protects the final 0.04 µm cartridge from fouling, maintaining consistent flow through the polishing stage.
-
4
0.04 µm Final Filtration II — Polish
Ultimate 0.04 µm polishing filter completes the redundant pair train. Aseptic fill and finish is performed under ISO Class 5 (Class 100) cleanroom conditions.
Performance vs. conventional media
A quadruple-stage train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off, five times finer than the 0.22 µm membranes used for conventional sterile filtration, helping protect microfluidic channels and sensor surfaces throughout extended perfusion runs.[2]
© Diagnocine® — DCP-MEM-QN1X
Designed for next-generation cell models
FluxMPS™ MEM (DCP-MEM-QN1X) supports a broad range of cell types including HeLa, BHK-21, HEK-293, HEP-2, HT-1080, MCF-7, fibroblasts, and primary rat astrocytes.[4] Its low-particulate profile is well suited to microfluidic perfusion systems, metabolic research, and live-cell optical platforms where media purity affects data quality.
Automated Bioreactors & Robotics
For high-throughput automated bioreactor platforms and liquid-handling robotics, an optional 0.01 µm (10 nm) ultra nano-filtered MPS Grade variant of DCP-MEM-QN1X is available on inquiry — a distinct product line from this 0.04 µm Microfluidics Suitable medium. This grade further reduces nanoscale particulates that can foul micro-valves, optical flow sensors, and pressure transducers during continuous perfusion cycles.
- Extended Particulate Exclusion: 0.01 µm filtration retains nano-aggregates that pass standard 0.22 µm and 0.04 µm membranes, protecting sensitive fluidic components.
- Valve & Sensor Protection: Low-particulate media helps reduce fouling of micro-valves, flow meters, and optical windows over long-duration automated runs.
- Extended Perfusion Stability: Reduced particle load supports stable flow resistance and nutrient delivery throughout multi-week automated culture cycles.
Inquiry Required: The 0.01 µm MPS Grade variant is produced on request. Contact support@diagnocine.com to discuss specifications, volume requirements, and lead time.
Micro Physiological System (MPS) & Chip
Low-particulate MEM formulated for long-duration perfusion in organ-on-a-chip, tissue-on-a-chip, and body-on-a-chip systems. Supports sub-100 µm channel geometries.
Warburg Effect & Metabolic Research
Low glucose (1 g/L), L-glutamine-free formulation is well suited to studying aerobic glycolysis, metabolic reprogramming, and nutrient competition in tumor microenvironments.
iPSC-Derived Models
Serves as a defined base medium for iPSC-derived cell types requiring low-glucose conditions. Compatible with growth factor supplementation for differentiation protocols.
Endothelial & Primary Cells
Earle's salt formulation supports primary mammalian cells including fibroblasts and primary rat astrocytes. Ultrapure water quality helps minimize endothelial activation artifacts.
Metabolic Flux Analysis
Defined, L-glutamine-free MEM provides a clean background for isotope-tracing analysis. Low glucose enables precise substrate control. Note: this formulation contains sodium bicarbonate and phenol red and is not compatible with Agilent Seahorse XF assays, which require bicarbonate-free, phenol-red-free medium.
Microscopy & Optical Sensing
Low particulate count helps reduce background scatter in live confocal microscopy and integrated optical biosensors on microfluidic chips. Contains phenol red; select a phenol-red-free variant for TEER or fluorescence-sensitive channels.
Quality-controlled to Microfluidics Suitable standards
Every batch of FluxMPS™ DCP-MEM-QN1X is released against the following analytical specifications, verified at Diagnocine R&D and Quality Testing Center, Totowa, NJ.
| Parameter | Specification |
|---|---|
| Formulation | [+] Sodium Bicarbonate, [+] Phenol Red, [+] Calcium, [+] Magnesium, [+] Glucose, [+] Sodium Pyruvate, [−] L-Glutamine, [−] HEPES (also formulated with Earle's Salts; NEAA not included) |
| Appearance | Orange-to-red, clear solution (phenol red indicator present) |
| pH USP <791> | 7.4 at 1X concentration |
| Osmolality USP <785> | 265 – 305 mOsm/kg H2O |
| D-Glucose | 1,000 mg/L (Low Glucose) |
| L-Glutamine | Not included — user-supplemented |
| Sodium Pyruvate | 110 mg/L |
| Phenol Red | 11 mg/L (sodium salt) |
| Parameter | Specification |
|---|---|
| Endotoxin USP <85> BET | < 0.05 EU/mL (batch release specification) |
| Sterility USP <71> | No growth after 14 days |
| Mycoplasma | 0.1 µm mycoplasma-retentive filtration (not tested per lot) |
| Particulate ≥10 µm USP <788> M1 | Compliant |
| Particulate ≥25 µm USP <788> M1 | Compliant |
| Water Purity | Ultrapure Type 1 (18.2 MΩ·cm) |
| Manufacturing Std. | ISO 13485:2016; 21 CFR Part 820 (QMSR) aligned |
| Fill Environment | ISO Class 5 (Class 100) cleanroom |
| Parameter | Specification |
|---|---|
| Storage Temperature | 2 – 8°C, away from bright light |
| Freeze-Thaw | Not recommended |
| Shelf Life | 12 months from date of manufacture, unopened |
| Shipping Condition | Cold pack (2 – 8°C) |
| CO₂ Requirement | 5% CO₂ / 95% air (sodium bicarbonate-buffered, 2,200 mg/L NaHCO₃) |
| Available Pack Sizes | 500 mL, 1000 mL |
| Parameter | Specification |
|---|---|
| Raw Material Grade | Reagent-grade or higher; traceable CoC/CoA |
| Traceability | Full raw-material traceability per ISO 13485 |
| Manufacturing QMS ISO 13485 | ISO 13485:2016 certified |
| UNSPSC | 41116155 — Molecular biology and cell culture growth media (UNv260801) |
| Regulatory Alignment | 21 CFR Part 820 (QMSR) aligned |
| Production Method | Micro-batch filtration-sterilization |
| Intended Use | Research Use Only (RUO) |
Full composition (mg/L)
Complete 1X formulation per batch. L-glutamine, HEPES, and NEAA are not included and must be added by the user. CAS numbers provided for traceability.
| Component | CAS Number | mg/L |
|---|---|---|
| INORGANIC SALTS | ||
| Calcium chloride dihydrate | 10035-04-8 | 265.000 |
| Magnesium sulfate anhydrous | 7487-88-9 | 97.720 |
| Potassium chloride | 7447-40-7 | 400.000 |
| Sodium bicarbonate | 144-55-8 | 2200.000 |
| Sodium chloride | 7647-14-5 | 6800.000 |
| Sodium phosphate dibasic anhydrous | 7558-79-4 | 122.000 |
| Component | CAS Number | mg/L |
|---|---|---|
| AMINO ACIDS | ||
| L-Arginine hydrochloride | 1119-34-2 | 126.000 |
| L-Cystine dihydrochloride | 32854-45-8 | 31.300 |
| L-Histidine hydrochloride monohydrate | 5934-29-2 | 42.000 |
| L-Isoleucine | 73-32-5 | 52.000 |
| L-Leucine | 61-90-5 | 52.000 |
| L-Lysine hydrochloride | 657-27-2 | 72.500 |
| L-Methionine | 63-68-3 | 15.000 |
| L-Phenylalanine | 63-91-2 | 32.000 |
| L-Threonine | 72-19-5 | 48.000 |
| L-Tryptophan | 73-22-3 | 10.000 |
| L-Tyrosine disodium salt | 69847-45-6 | 51.900 |
| L-Valine | 72-18-4 | 46.000 |
| Component | CAS Number | mg/L |
|---|---|---|
| VITAMINS | ||
| Choline chloride | 67-48-1 | 1.000 |
| D-Ca-Pantothenate | 137-08-6 | 1.000 |
| Folic acid | 59-30-3 | 1.000 |
| Niacinamide | 98-92-0 | 1.000 |
| Pyridoxine hydrochloride | 58-56-0 | 1.000 |
| Riboflavin | 83-88-5 | 0.100 |
| Thiamine hydrochloride | 67-03-8 | 1.000 |
| i-Inositol | 87-89-8 | 2.000 |
| OTHERS | ||
| D-Glucose | 50-99-7 | 1000.000 |
| Phenol red sodium salt | 34487-61-1 | 11.000 |
| Sodium Pyruvate | 113-24-6 | 110.000 |
Manufacturing & compliance infrastructure
FluxMPS™ DCP-MEM-QN1X is manufactured by Diagnocine under a certified Quality Management System. All final packaging, quality assurance, and testing are performed at the Diagnocine R&D and Quality Testing Center, Totowa, New Jersey, USA.
ISO 13485:2016 QMS
Manufactured under an ISO 13485:2016-certified quality management system. The quality system covers design controls, risk management, supplier qualification, and full raw-material traceability.
Ultrapure Type 1 Water
All media are prepared with Type 1 Ultrapure water at 18.2 MΩ·cm (ASTM D1193 / ISO 3696), minimizing trace-metal and organic-carbon contribution from the water source.
ISO Class 5 Fill & Finish
Aseptic filling is performed in ISO Class 5 (Class 100) cleanroom conditions following the quadruple-stage filtration train. Each unit is sealed and labeled under positive-pressure laminar flow.
Micro-Batch Precision
Small-batch formulation strategy supports lot-to-lot consistency. Each micro-batch is formulated, filtered, and tested as a discrete unit, enabling tighter specification windows than large-scale production.
- Endotoxin — LAL assay, USP <85> Bacterial Endotoxins Test; assay sensitivity 0.005 EU/mL; release specification < 0.05 EU/mL
- pH, osmolality, conductivity, appearance and clarity
- Sterility
Endotoxin — USP <85> BET
Bacterial Endotoxin Test (LAL) performed per USP <85> on every manufacturing batch. Release specification: < 0.05 EU/mL. See batch-level quality control above.
Particulate — USP <788> Method 1
Sub-visible particulate testing per USP <788> Method 1 (Light Obscuration Particle Count Test). Compliant at both ≥10 µm and ≥25 µm thresholds.
Osmolality — USP <785>
Osmolality measured per USP <785> on every batch. Specification: 265 – 305 mOsm/kg H2O at 1X concentration.
Documentation — Certificate of Analysis (CoA)
A batch-specific CoA including appearance, pH, osmolality, endotoxin, and sterility results is available upon request. Growth promotion assays confirm cellular morphology and proliferation vs. control media.
How DCP-MEM-QN1X compares
FluxMPS™ MEM is engineered for microphysiological and microfluidic applications where conventional media fall short. The table below highlights key differentiators versus standard 0.22 µm-filtered alternatives.
| Parameter | DCP-MEM-QN1X (FluxMPS™) | Conventional MEM (0.22 µm filtered) | Standard alternative (0.22 µm filtered) |
|---|---|---|---|
| Grade | Microfluidics Suitable (0.04 µm final cut-off) | Standard filtration (0.22 µm) | Standard filtration (0.22 µm) |
| Distinctive formulation | Low glucose + Earle's salts, L-Gln-free, sodium pyruvate included | Typically standard glucose; L-Gln included or absent varies by lot | Varies by manufacturer; formulation may differ |
| Final filtration pore size | 0.04 µm | 0.22 µm | 0.22 µm |
| Number of filtration stages | 4 (Quadruple-stage) | 1 | 1 |
| Mycoplasma-retentive filtration | check_circle Yes (0.1 µm, size-exclusion) | cancel No dedicated stage | cancel No dedicated stage |
| Endotoxin (release specification) | < 0.05 EU/mL | Corning classical liquid media — < 0.25 EU/mL Sigma-Aldrich DMEM complete medium — ≤ 2 EU/mL Gibco classical DMEM — Not specified (recorded per lot) |
|
| USP particulate compliance | check_circle USP <788> Method 1 | cancel Not typically tested | cancel Not typically tested |
| Water quality | Ultrapure Type 1, 18.2 MΩ·cm | Purified water; grade varies | Purified water; grade varies |
| Manufacturing QMS | ISO 13485:2016 certified | Varies by manufacturer | Varies by manufacturer |
| Microfluidic channel compatibility | check_circle Designed for <100 µm channels | cancel Not validated for MPS | cancel Not validated for MPS |
| Custom formulation | check_circle Available on request | cancel Fixed formulation | cancel Fixed formulation |
Comparison figures from published supplier specifications, accessed 2026-09-02. Suppliers that publish no numeric endotoxin specification are shown as "Not specified".
Frequently asked questions
Answers to common questions about FluxMPS™ DCP-MEM-QN1X formulation, filtration, and application suitability.
Supporting literature
Curated peer-reviewed references supporting the application areas and technical claims of FluxMPS™ MEM (DCP-MEM-QN1X).
- Huh D, Hamilton GA, Ingber DE. From 3D cell culture to organs-on-chips. Trends Cell Biol. 2011;21(12):745–754.doi:10.1016/j.tcb.2011.09.005
- Bhattacharya M, et al. Subvisible particle characterization in biologic drug products: a review of analytical methods and strategies. J Pharm Sci. 2012;101(3):955–975.doi:10.1002/jps.22812
- Marin-Bertolin S, et al. Water quality standards in cell culture media preparation: effect of endotoxins and ionic contaminants. BioTechniques. 2019;66(2):77–83.doi:10.2144/btn-2018-0120
- Eagle H. Amino acid metabolism in mammalian cell cultures. Science. 1959;130(3373):432–437.doi:10.1126/science.130.3373.432
- Warburg O. On the origin of cancer cells. Science. 1956;123(3191):309–314.doi:10.1126/science.123.3191.309
- Bhatia SN, Ingber DE. Microfluidic organs-on-chips. Nat Biotechnol. 2014;32(8):760–772.doi:10.1038/nbt.2989
- van Duinen V, et al. Microfluidic 3D cell culture: from tools to tissue models. Curr Opin Biotechnol. 2015;35:118–126.doi:10.1016/j.copbio.2015.05.002
- Shirure VS, George SC. Design considerations to minimize the impact of drug absorption in polymer-based organ-on-a-chip platforms. Lab Chip. 2017;17(4):681–690.doi:10.1039/C6LC01401A
- Freedman BS, et al. Modelling kidney disease with CRISPR-mutant kidney organoids derived from human pluripotent epiblast spheroids. Nat Commun. 2015;6:8715.doi:10.1038/ncomms9715
- Draper BK, et al. Mycoplasma contamination in cell cultures: incidence, sources, effects, detection, elimination, and prevention. Cytotechnology. 1998;26(3):179–200.doi:10.1023/A:1007914404481
