Cell Culture Chamber Slides, 4 well w/glass slide, Black, 2.13 cm2, 0.5-1.3ml, 6/pk, 12/cs
Product#: NST-230114
$96.57
Availability:
Ships in 24 hours
Storage and shelf-life 3 Years
Sterility Sterile
Description
The Cell Culture Slide allows scientists to grow cells directly on a microscope slide without need for further transfer. The microscope slide is is a standard size, 25 mm x 75 mm.
Disassembly of the slide is easy when it comes time view your cells under the microscope. Simply snap the locks on the side of the slide down and lift to remove the slide and chambers from the base; no need for a separate tool for disassembly. From there, the chambers themselves can be removed by hand and you're left with slide for microscope analysis. The inert hydrophobic green border printed on the slide allows for easy identification of cell culture area.

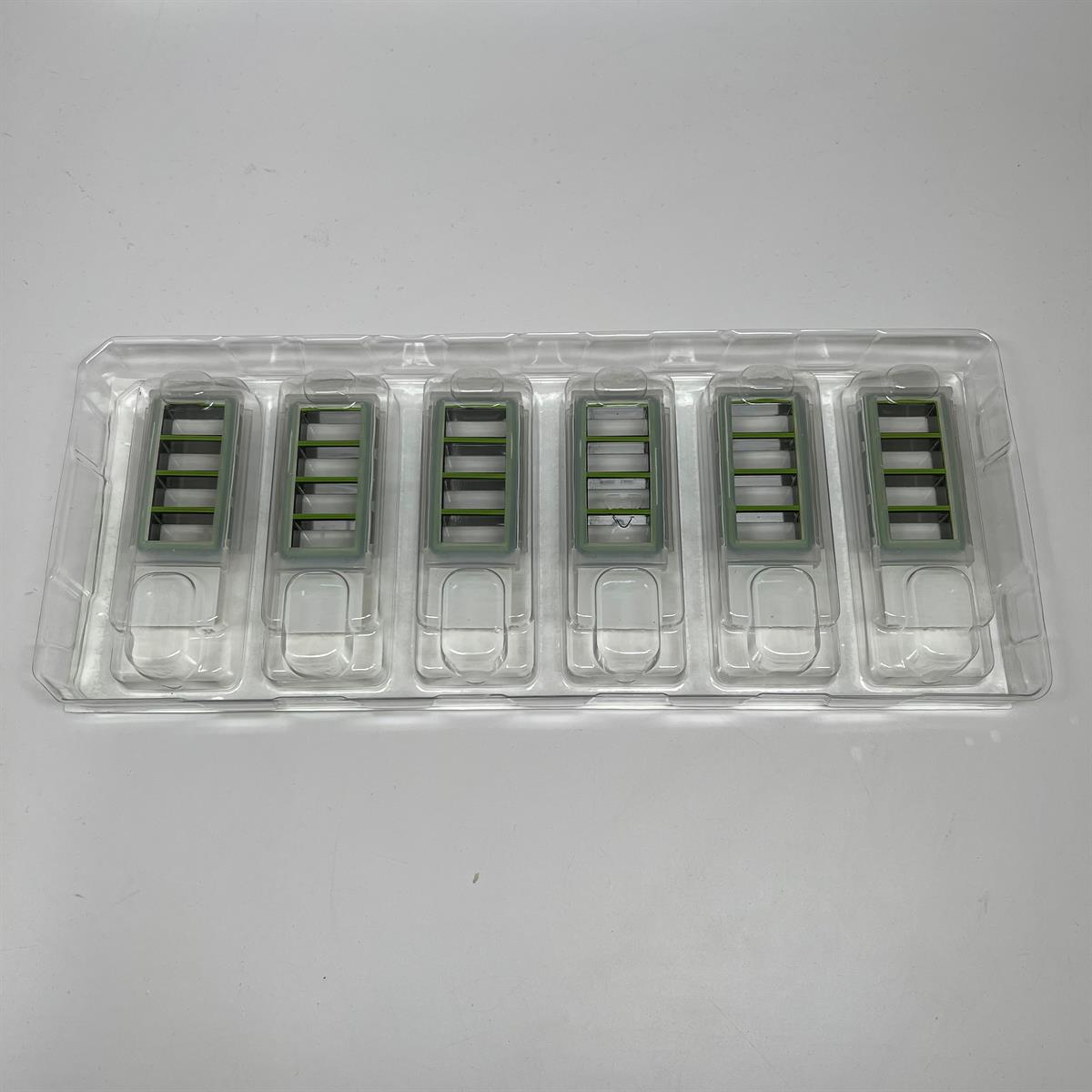

Each chamber slide is composed of a base made of polypropylene, the slide which is made of borosilicate glass, the clear chambers which are made of polystyrene, and the lid which is made of polypropylene. The slides comes in packs of 6 slides/per tray and the tray can be used as an incubation rack in your CO2 incubator.
Disassembly of the slide is easy when it comes time view your cells under the microscope. Simply snap the locks on the side of the slide down and lift to remove the slide and chambers from the base; no need for a separate tool for disassembly. From there, the chambers themselves can be removed by hand and you're left with slide for microscope analysis. The inert hydrophobic green border printed on the slide allows for easy identification of cell culture area.
Each chamber slide is composed of a base made of polypropylene, the slide which is made of borosilicate glass, the clear chambers which are made of polystyrene, and the lid which is made of polypropylene. The slides comes in packs of 6 slides/per tray and the tray can be used as an incubation rack in your CO2 incubator.
| Chamber Slides | Product ID | No. Well | Chamber Volume | Color | Surface | Quantity | Buy |
 |
NST-230101 | 1 | 2.5-5.5ml | Clear | 9.40 cm2 | 6/pk, 12/cs |  |
| NST-230102 | 2 | 1.2-2.5ml | 4.55 cm2 | 6/pk, 12/cs | |
||
| NST-230104 | 4 | 0.5-1.3ml | 2.13 cm2 | 6/pk, 12/cs | |
||
| NST-230108 | 8 | 0.2-0.6ml | 0.98 cm2 | 6/pk, 12/cs | |
||
 |
NST-230111 | 1 | 2.5-5.5ml | Black |
9.40 cm2 | 6/pk, 12/cs | |
| NST-230112 | 2 | 1.2-2.5ml | 4.55 cm2 | 6/pk, 12/cs | |
||
| NST-230114 | 4 | 0.5-1.3ml | 2.13 cm2 | 6/pk, 12/cs | Current Link | ||
| NST-230118 | 8 | 0.2-0.6ml | 0.98 cm2 | 6/pk, 12/cs | |
||
 |
NST-230121 | 1 | 2.5-5.5ml | White | 9.40 cm2 | 6/pk, 12/cs | |
| NST-230122 | 2 | 1.2-2.5ml | 4.55 cm2 | 6/pk, 12/cs | |
||
| NST-230124 | 4 | 0.5-1.3ml | 2.13 cm2 | 6/pk, 12/cs | |
||
| NST-230128 | 8 | 0.2-0.6ml | 0.98 cm2 | 6/pk, 12/cs | |
Specification
- Suitable for microscopic observation
- Alphanumeric well classification
- Easy flip for chamber unlock& slide disassembly
- Medical grade silicone (Remains on the chamber after detachment)
- No separation tool required
- DNase / RNase – free
- Non – pyrogenic
- Non – cytotoxic

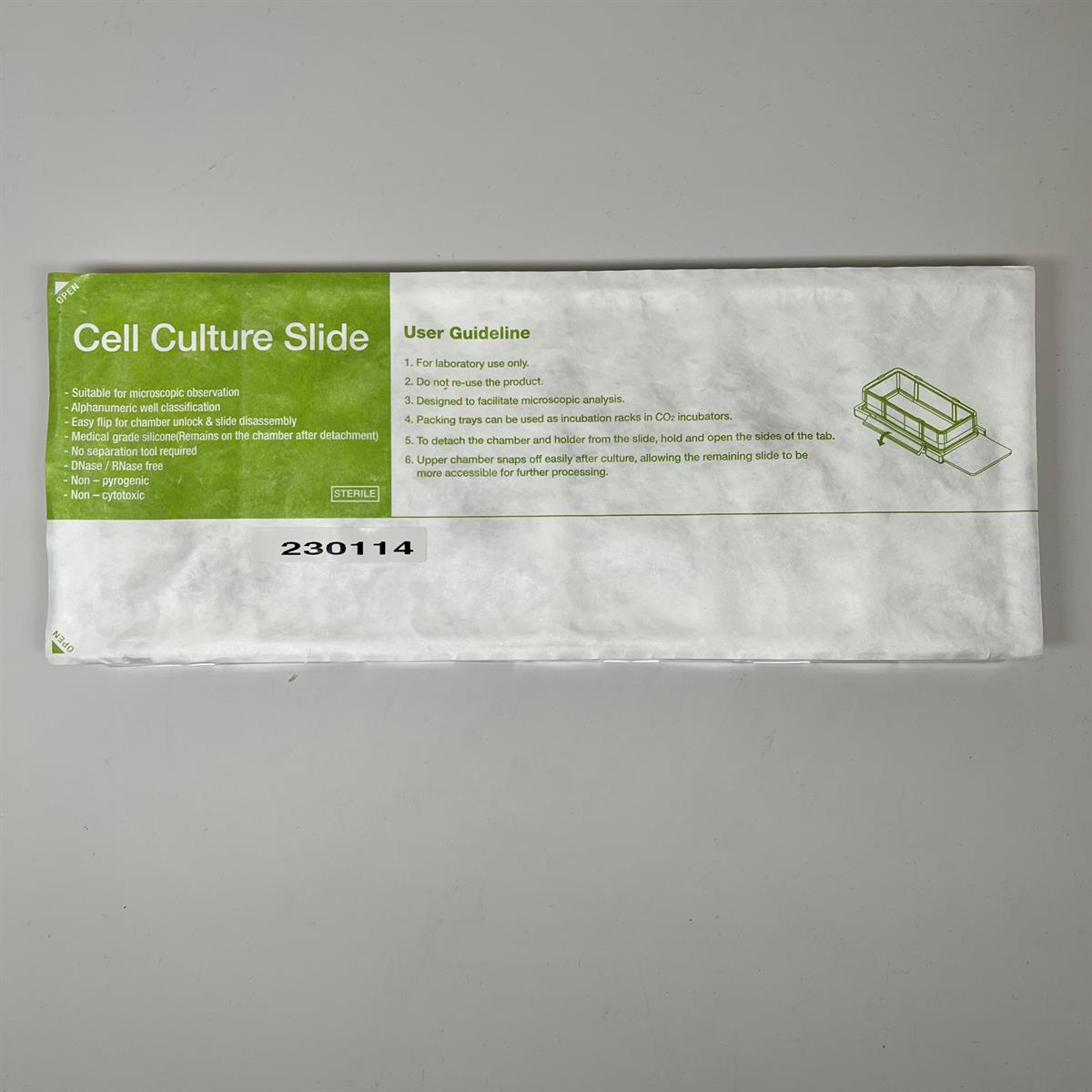

User Guideline
- For laboratory use only.
- Do not re-use the product.
- Designed to facilitate microscopic analysis.
- Packing trays can be used as incubation racks in CO2 incubators.
- To detach the chamber and holder from the slide, hold and open the slides of the tab.
- Upper chamber snaps off easily after culture, allowing the remaining slide to be more accessible for further processing.
