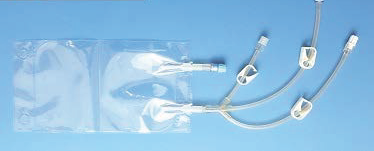

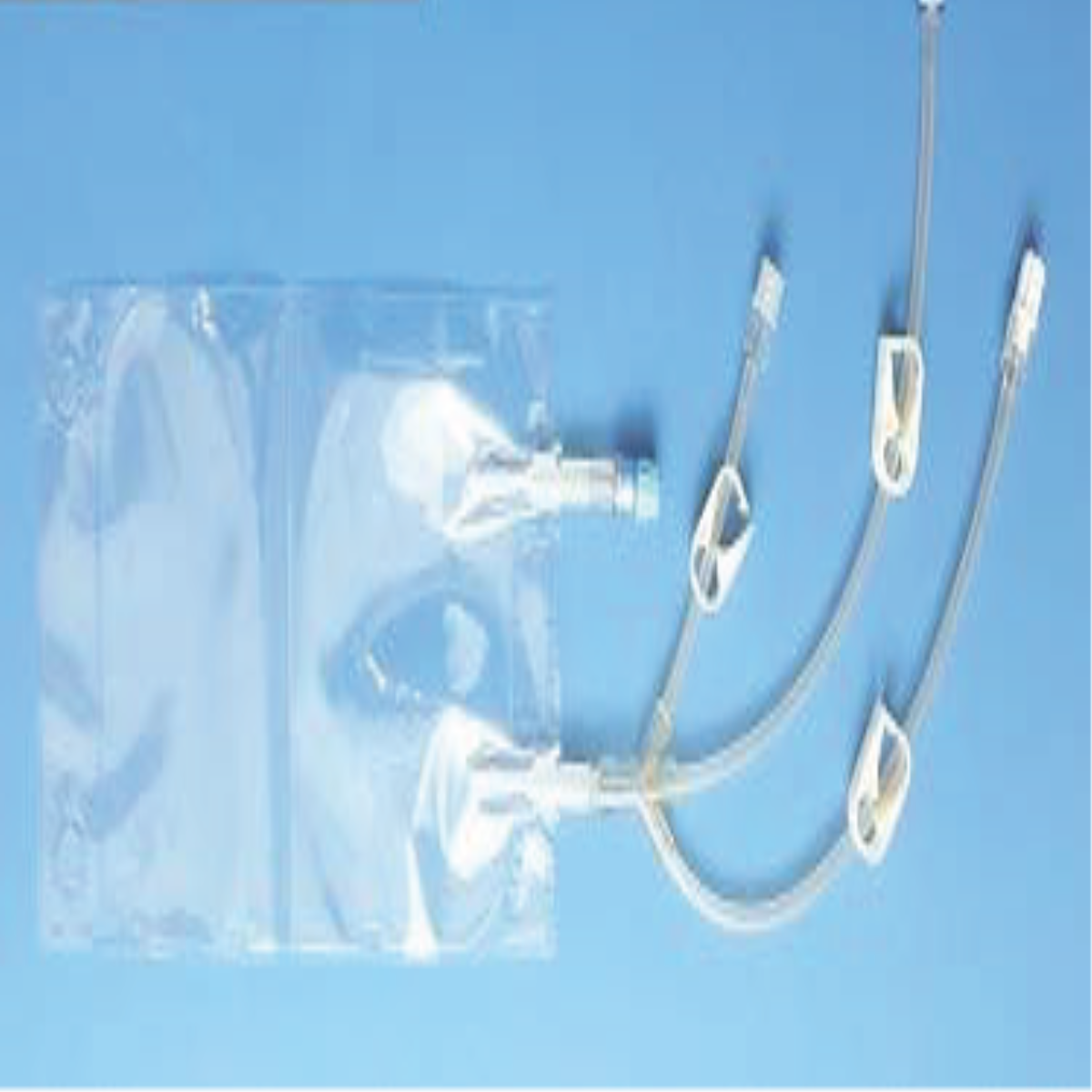

Antibody Immobilization Bag A
NIPRO's Antibody Immobilization Bag A
Cat No: FNK-87-362
Size: 5 sets
Storage: RT
Description
You can immobilize any antibodies you want!
When stimulating cells by antibodies, antibodies are immobilized on cell culture microplate.
However, this method involves hard work if many cells are required to be stimulated on many microplates should be used.
NIPRO's Antibody Immobilization Bag A saves cost and time.
Just put antibody solution, antibodies are immobilized on inside of the bag and after that, cells can be cultured in this closed bag system.
This bag has excellent gas permeability; just place it in CO2 incubator.
Features
- High gas permeability
- High safety
- High transparency
- Needleless support * Please use lock type syringe
|
Inside Dimension |
195 x 118 mm |
|
Dimension when crumped at bag crump 1 |
75cm2 / side |
|
Dimension when crumped at bag crump 2 |
150cm2 / side |
|
Total Dimension |
225cm2 / both sides |
|
Medium volume |
200 mL |
|

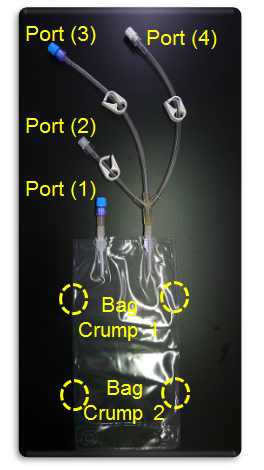

Port (1) |
Sampling Port |
|
Port (2) |
Port for filling or collecting antibody |
|
Length ：80mm |
|
|
Port (3) |
Port for filling medium or collecting cells |
|
Length ：200mm |
|
|
Port (4) |
Port for connecting culture bag |
|
Length ：200mm |
- Close all 3 crumps and fill antibody solution from Port (2).
- Incubate the bag (> 24 hours) at room temperature.
- Open Port (2) and drain antibody solution.
- Seal two parts of the line of Port (2).
(B) Activation culture
Fill cell suspension and medium through Port (3)
(C) Transfer to NIPRO cell culture bag (#87-302 or #87-352)
When doing expansion culture after (B), connect needleless port of culture bag to Port (4) of antibody immobilization bag and transfer cell suspension.
