Agate Grinding Mill, Single Ball (Standard), 34 x 24 x 55 x 75mm
Agate Grinding Mill
Cat No: See table below
Size: See table below
Storage: Room temperature.
Description
Agate mortar is cut from rough stone. We mainly manufacture two types, shallow and deep types. As our final finish, we have our own internal polishing finish. After the final process, it will be washed and shipped. Our technology is to bring out beautiful luster peculiar to agate by internal polishing. In addition , we also perform internal slit processing (0.1 to 0.2 mm). Applying a fine slit to the inner wall of the mortar shortens the grinding time. Slit processing is our unique technology.
These mortars are carefully manufactured and treated with original polish finishing. This special polish finishing helps increase the collection rate. All products are made in Japan.
Repairs: Remachining, repolishing process.
Mortars come in: Agate, Quartz glass, Sapphire glass
Materials: High quality agate ore from Brazil, High purity quartz glass, High purity sapphire glass
For customized products, please contact us at info@diagnocine.com
Features

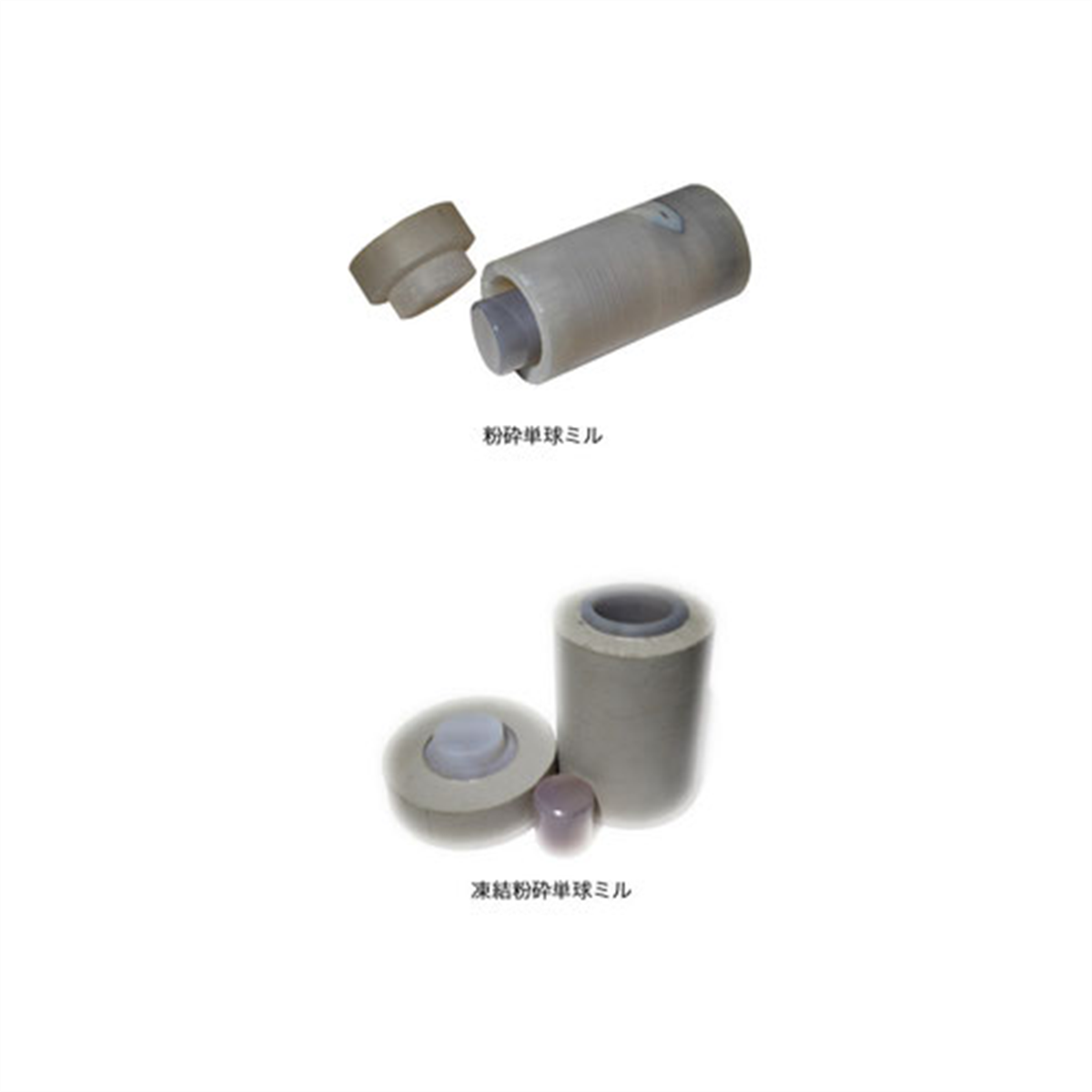

Since the single ball mill is cut from the rough, The lid, ball and tube are all made of agate.
There are two types of agate mills,The freeze-pulverized monosphere mill has a urethane coating (about 10 mm).
[How to use]
1. Sample (approx.
2. Introduce agate balls
3. Shake the hand while holding the agate lid
[Product dimensions]
Tube: Φ24mm × 55mm (inner dimensions)
Monocyte: Φ20mm x 20mm (outside dimensions)
| Product Name | Product # | Size (Outer Dia. x Inner Dia. x Depth x Height) | Quick Link | |

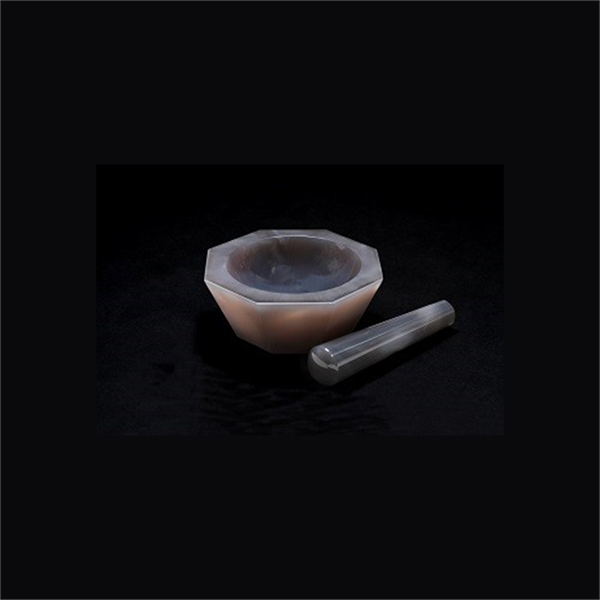

| Agate Mortar & Pestle | Shallow Form | FNK-KA40-S | 40 x 35 x 10 x 20 mm |  |
| FNK-KA50-S | 50 x 40 x 11 x 22 mm | |
||
| FNK-KA60-S | 60 x 50 x 12 x 25 mm | |
||
| FNK-KA70-S | 70 x 55 x 15 x 30 mm | |
||
| FNK-KA75-S | 75 x 60 x 17 x 32 mm | |
||
| FNK-KA80-S | 80 x 65 x 20 x 34 mm | |
||
| FNK-KA90-S | 90 x 70 x 23 x 37 mm | |
||
| FNK-KA95-S | 95 x 75 x 24 x 38 mm | |
||
| FNK-KA100-S | 100 x 80 x 25 x 40 mm | |
||
| FNK-KA105-S | 105 x 85 x 26 x 41 mm | |
||
| FNK-KA110-S | 110 x 90 x 27 x 45 mm | |
||
| FNK-KA120-S | 120 x 100 x 30 x 50 mm | |
||
| FNK-KA130-S | 130 x 110 x 33 x 53 mm | |
||
| FNK-KA140-S | 140 x 115 x 35 x 55 mm | |
||
| FNK-KA150-S | 150 x 120 x 40 x 60 mm | |
||
| FNK-KA160-S | 160 x 130 x 45 x 65 mm | |
||
| FNK-KA170-S | 170 x 140 x 50 x 70 mm | |
||
| FNK-KA180-S | 180 x 150 x 50 x 75 mm | |
||
| Deep Form | FNK-KA50-D | 50 x 40 x 18 x 35 mm | |
|
| FNK-KA60-D | 60 x 50 x 20 x 40 mm | |
||
| FNK-KA70-D | 70 x 55 x 25 x 45 mm | |
||
| FNK-KA80-D | 80 x 65 x 30 x 50 mm | |
||
| FNK-KA90-D | 90 x 70 x 33 x 53 mm | |
||
| FNK-KA100-D | 100 x 80 x 35 x 58 mm | |
||
| FNK-KA110-D | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA120-D | 120 x 100 x 43 x 70 mm | |
||
| FNK-KA130-D | 130 x 110 x 45 x 72 mm | |
||
| FNK-KA140-D | 140 x 115 x 50 x 75 mm | |
||
| FNK-KA150-D | 150 x 120 x 55 x 78 mm | |
||
| Special Deep Form | FNK-KA70-TD | 70 x 50 x 40 x 60 mm | |
|
| FNK-KA80-TD | 80 x 65 x 45 x 65 mm | |
||
| FNK-KA90-TD | 90 x 70 x 50 x 70 mm | |
||
| FNK-KA100-TD | 100 x 80 x 55 x 75 mm | |
||
| FNK-KA110-TD | 110 x 90 x 60 x 80 mm | |
||
| FNK-KA120-TD | 120 x 100 x 75 x 95 mm | |
||
| With Slits | FNK-KA60-U | 60 x 50 x 20 x 40 mm | |
|
| FNK-KA70-U | 70 x 55 x 25 x 45 mm | |
||
| FNK-KA80-U | 80 x 65 x 30 x 50 mm | |
||
| FNK-KA90-U | 90 x 70 x 33 x 53 mm | |
||
| FNK-KA100-U | 100 x 80 x 35 x 58 mm | |
||
| FNK-KA110-U | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA120-U | 120 x 100 x 43 x 70 mm | |
||
| Magnet Type | FNK-KA-M5G | 100 x 80 x 35 x 60 mm | |
|
| FNK-KA-M10G | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA-M15G | 130 x 110 x 45 x 70 mm | |
||
| FNK-KA-M20G | 150 x 120 x 55 x 80 mm | |
||
| Agate Grinding Mill | Single Ball (Standard) | FNK-KAM-0 | 34 x 24 x 55 x 75 mm | Current Page |
| Fused Quartz Mortar and Pestle | FNK-KQ60-S | 60 x 50 x 20 x 35 mm | |
|
| FNK-KQ70-S | 70 x 55 x 25 x 40 mm | |
||
| FNK-KQ80-S | 80 x 65 x 30 x 45 mm | |
||
| FNK-KQ90-S | 90 x 70 x 33 x 50 mm | |
||
| FNK-KQ100-S | 100 x 80 x 35 x 55 mm | |
||
| FNK-KQ110-S | 110 x 90 x 38 x 60 mm | |
||
| FNK-KQ120-S | 120 x 100 x 42 x 65 mm | |
||
