250 mL Bottle Top Vacuum Filter, 0.22 μm, PES, Sterile,1/pk, 24/cs

Product#: NST-342011

$155.40

Qty:

Availability:

Ships in 24 hours

Description
Reviews (0)

250 mL Vacuum Filtration Systems

Cat. No. NST-342011

Description

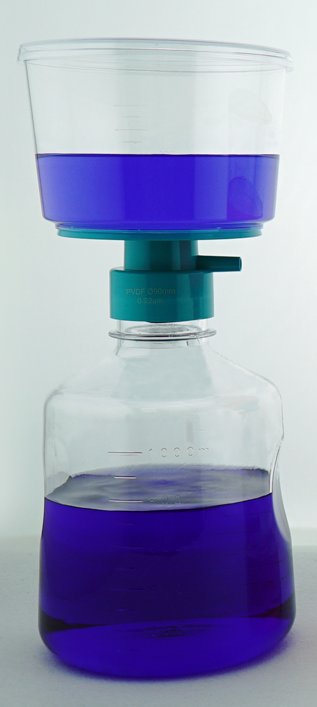

Nest Disposable Vacuum Filtration System is useful for large volume sample separation and sterilization for tissue culture media and other biological buffers. The units include PES or PVDF membrane filters with graduated filter tops made with polystyrene, and Acrylonitrile-Butadiene-Styrene necks with polystyrene receiving bottles. A separated sterile polyethylene cap is included. Filtration system is manufactured from raw material of high transparency polystyrene (PS) in three different volumes: 250ml/500ml/1000ml. They are available in three styles: complete filter/storage bottle systems, bottle top filters, and receiving bottles only.

Features

High flow rates and throughput;
Low protein binding and low chemical extractable;
Filtration membrane: PES or PVDF;
Pore size: 0.22μm;
E-beam Sterile
DNase-free, RNase-free;
Non-pyrogenic, non-endotoxin and surfactant free ;
SAL level 10^-6

Quick Link	Product ID	Volume (mL)	Membrane	Pore Density (μm)	Sterile	Packing Unit
Quick Link	Product ID	Volume (mL)	Membrane	Pore Density (μm)	Sterile	Packing Unit
	NST-342011	250	PES	0.22	Yes	1/pk, 24/cs
	NST-342111	250	PVDF	0.22	Yes	1/pk, 24/cs
	NST-343011	500	PES	0.22	Yes	1/pk, 24/cs
	NST-343111	500	PVDF	0.22	Yes	1/pk, 24/cs
	NST-342021	250			Yes	1/pk, 24/cs
	NST-343021	500			Yes	1/pk, 24/cs
	NST-344021	1000			Yes	1/pk, 12/cs

Quick Link	Product ID	Volume (mL)	Membrane	Pore Density (μm)	Sterile	Packing Unit
Quick Link	Product ID	Volume (mL)	Membrane	Pore Density (μm)	Sterile	Packing Unit
	NST-342001	250	PES	0.22	Yes	1/pk, 12/cs
	NST-342101	250	PVDF	0.22	Yes	1/pk, 12/cs
	NST-343001	500	PES	0.22	Yes	1/pk, 12/cs
	NST-343101	500	PVDF	0.22	Yes	1/pk, 12/cs
	NST-344001	1000	PES	0.22	Yes	1/pk, 12/cs
	NST-344101	1000	PVDF	0.22	Yes	1/pk, 12/cs

Product Parameters
Specification(ml)	Membrane Dia(mm)	Capacity(ml)	Max.Temp (0C)	Neck Dia(mm)	Height (mm)	Material of Neck
250	50	250	45	45	198	ABS
500	90	500	45	45	247	ABS
1000	90	1000	45	45	280	ABS

Optimal Design

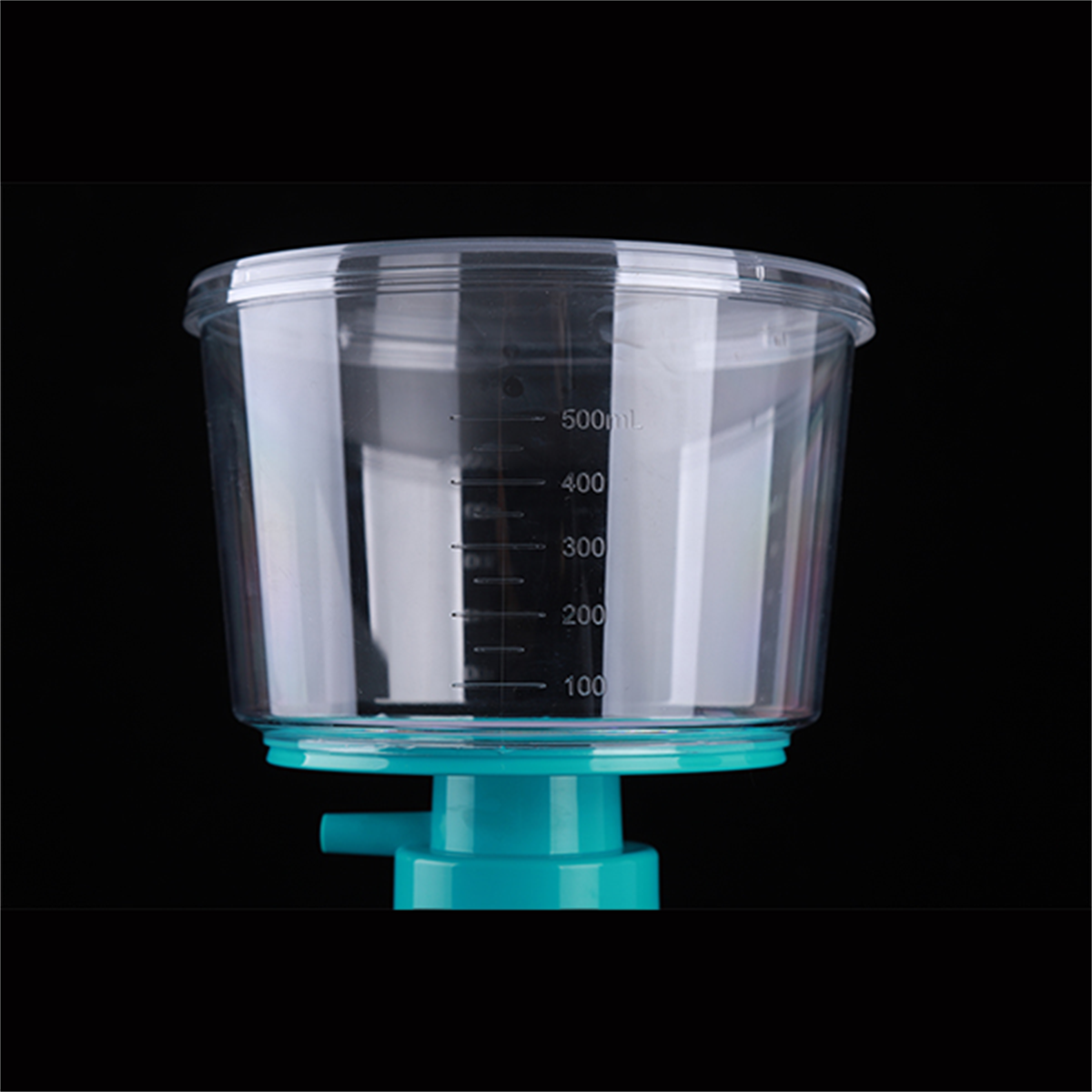

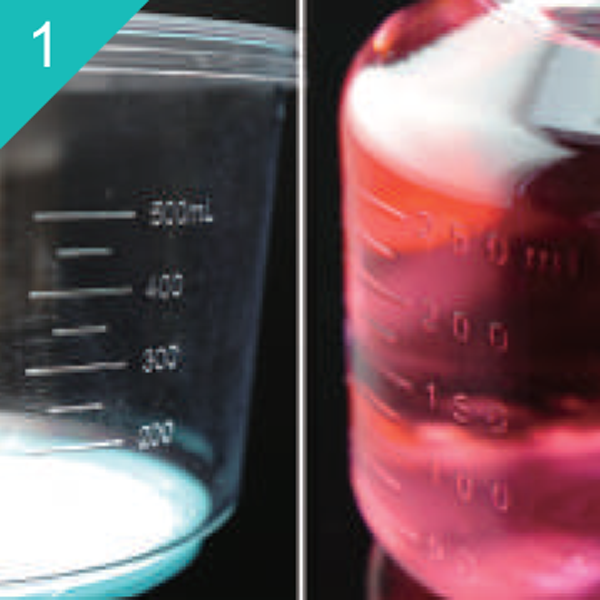

Molded clear graduation on both filter tops and receiving bottles.

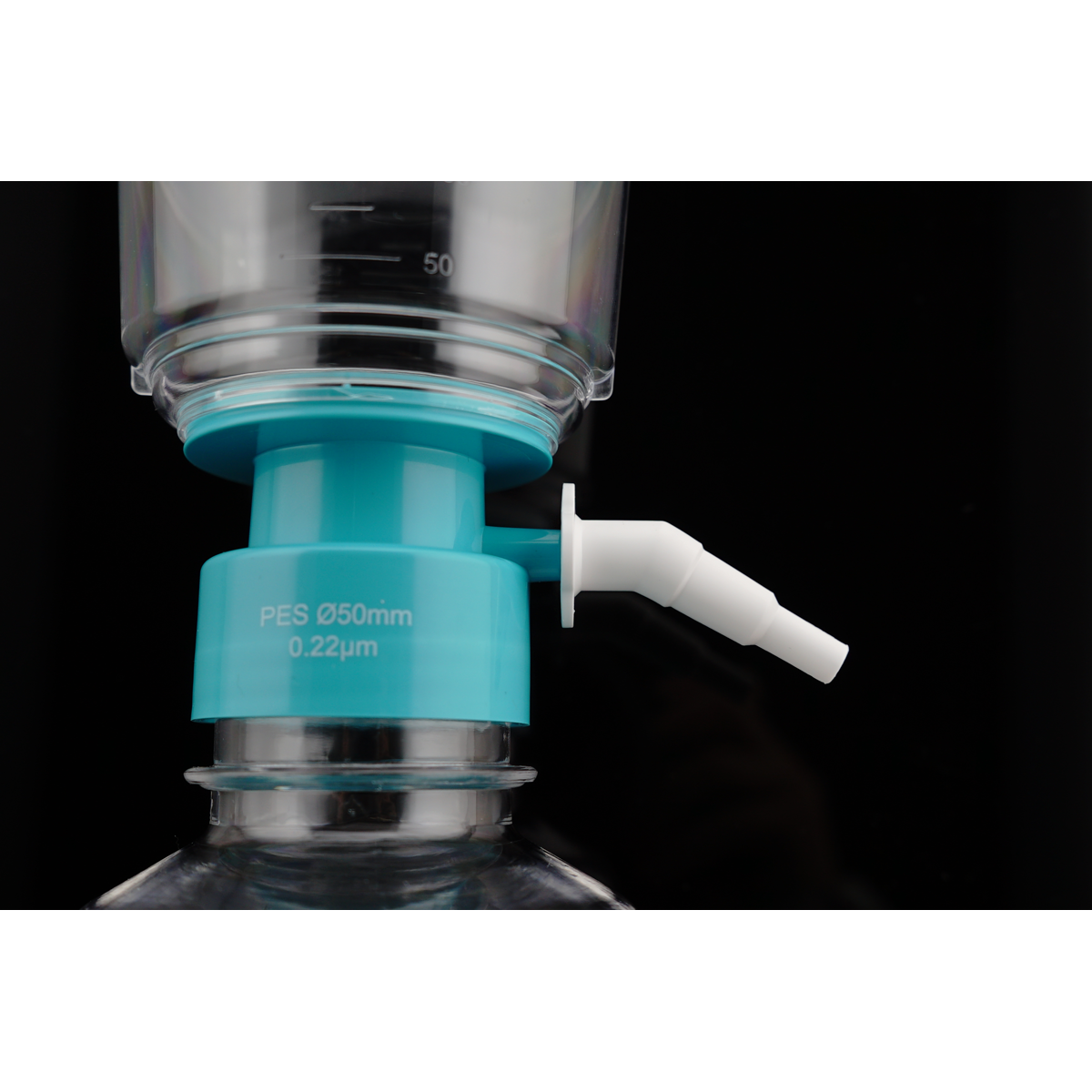

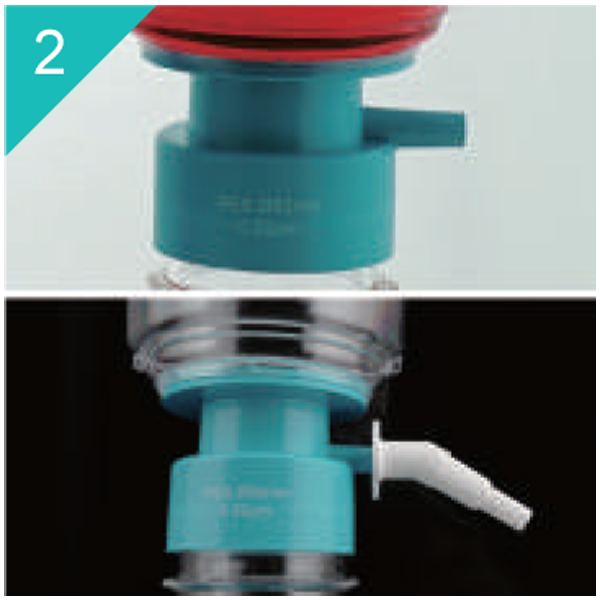

Angled hose connecter simplifies vacuum line attachmen. Hose adapters fit multiple hose diameters.

Bottle top filters have a neck size 45 mm and fit most 45 mm neck sized plastic and glass media

storage bottles.

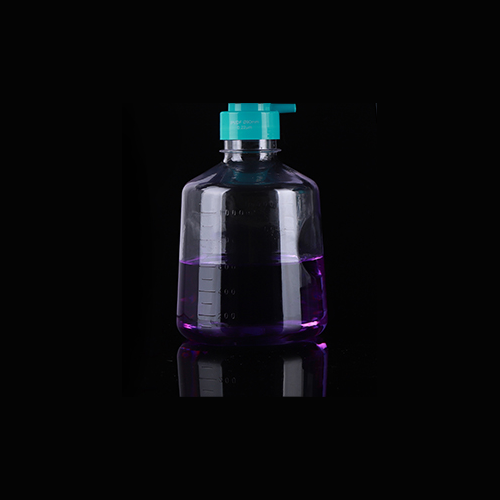

Easy grip style receiving bottles can also be used as storage bottles.

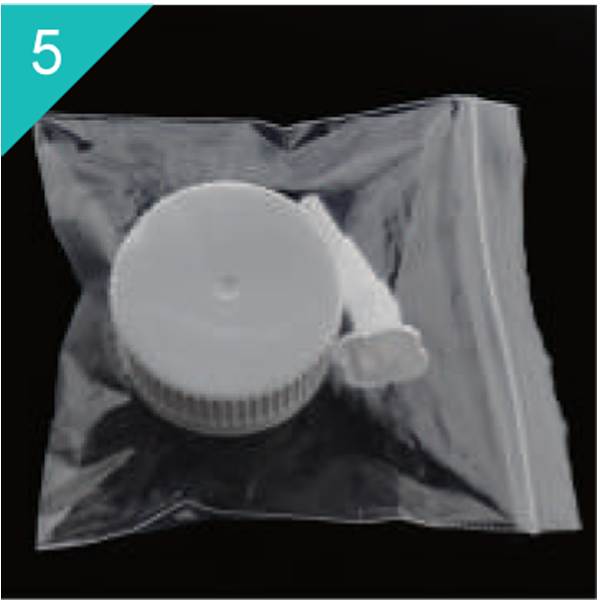

Cap of receiving bottle is individually packaged to prevent contamination.

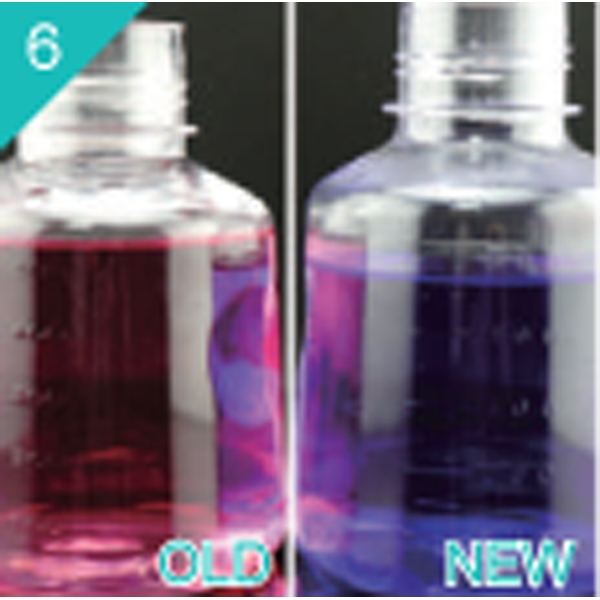

Receiving bottles maximum volume exceeds the maximum volume for filter tops, which eliminates overflow contamination.

Filter Units Size	Receiving Bottle Max. Volume
250 ml	300 ml
500 ml	600 ml
1000 ml	1250 ml

Comparison Tables of Different Membranes

PES 0.22 membrane

Brand	NEST	C brand	TF brand
Hydrophilic	Instantaneous wettability
Thickness (μm)	136-143	149-155	173-176
Flow rate (s) Φ47mm/+0.03MPa/50mL	10.32, 9.94	11.91, 11.42	9.09, 9.21
Bubble point (kPa)	-	-	-
IPA bubble point (kPa)	162-188	136-155	174-190
BSA binding μg/cm2	4.06	4.06	11.59

PVDF membrane

Brand	NEST	M brand (U.S.A)
Type	PVDF 0.22	Durapore 0.22
Thickness (μm)	126	106
Wettability (Water)	Pass	Pass
Wettability (Saturated NaCl Solution)	Pass	NG
Flow rate +0.03MPa/50mL	55	70.34??71.00
Bubble point (kPa)	>350	405
BSA binding μg/cm2	13.5	11.82
